Product Specifications:
| Product Name | 1300W LED Grow Light |
|---|---|
| Model number | STG-1300W-FD-XX |
| Power | 1300W |
| Input voltage | 100-277VAC 50/60Hz |
| LED Brand | Samsung （443PCS per bar） |
| LED Driver | SOSEN UL/CUL Driver |
| Lumen | 208000LM |
| Lumen efficiency | >160LM/W |
| CRI | >85 |
| PPF (380-780nm) | 3770μmol/S |
| EFF | 2.9μmol/J |
| Channel 1 | Samsung Full spectrum + 460nm Blue light + 660nm Red light (Customization is supported, please contact us.) |
| Channel 2 | 395nm UV +730nm IR |
| Coverage | 5*8ft |
| Mounting height | ≥ 12″ (30cm) Above canopy |
| Supplementation time | 12-18H/day |
| Protection level | >0.95 |
| Lamp size | 1085*1790*84mm |
| Housing color | Black, with 3M plug |
| Material | Aluminum |
| IP | IP54 (Indoor using) |
| Lifespan | >50,000H |
| Working Temperature | -37°C~+55°C |
| Operating Humidity | <95% |
| Storage Temperature | -40°C~+80°C |
| N.W/G.W（main and power supply） | 15.8kg/pcs / 18.82KG/pcs |
| Package（main and power supply） | Size：1145*110*1010mm |

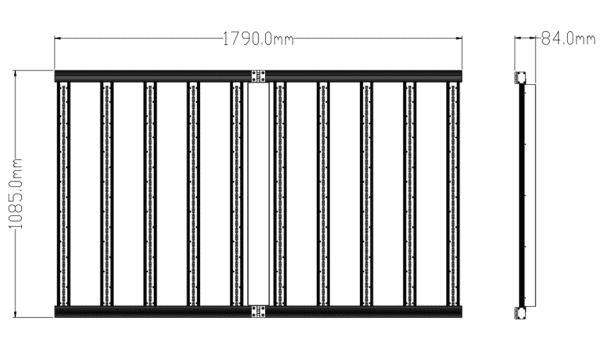

Dimension (mm):

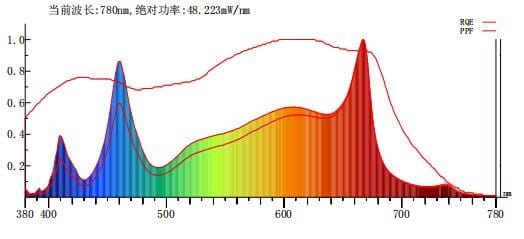

Spectrum:
Tip: Customization is supported, please contact us.

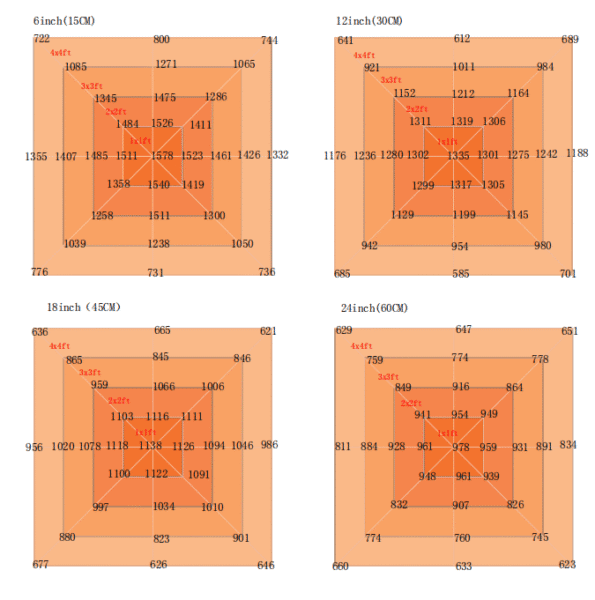

PPFD Distribution:
Installation:
1. Hanging the lamp on the ceiling or othe secure places with lifting rope.
2. Connecting the wires from driver to the lamp.
Note: The connector male plug arrow is aligined withe the female plug arrow.
3. Connecting the plug to the socket connect the plug to the power source.
Package:
| Box | QTY. | Size | N.W/CTN | G.W/CTN |
| box | 1PC | 1145*110*1010mm | 15.8 KG | 18.82 KG |
Packing List:
