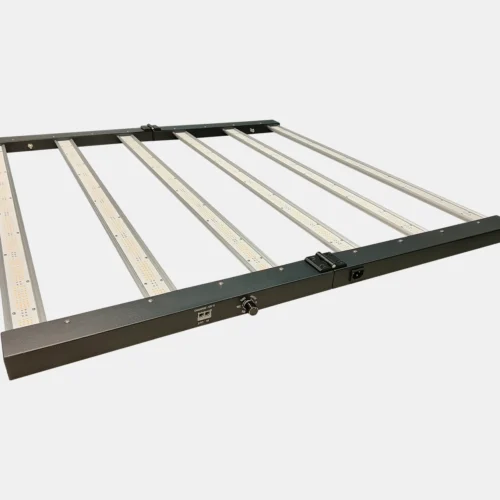

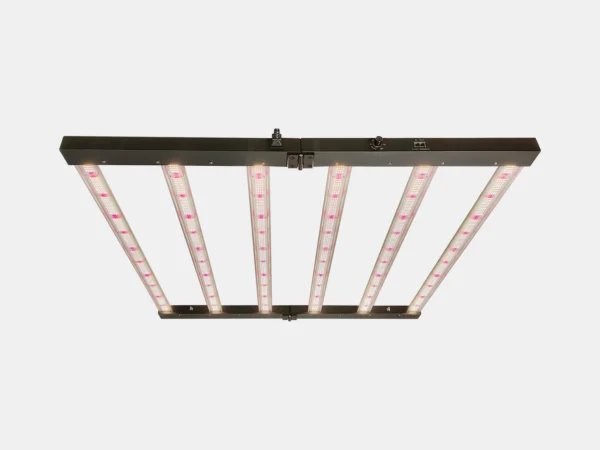

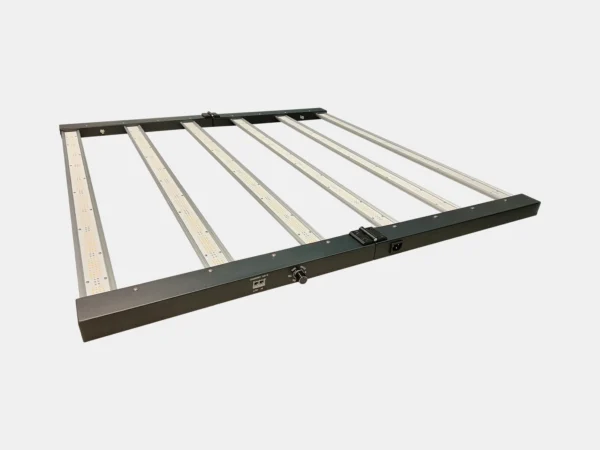

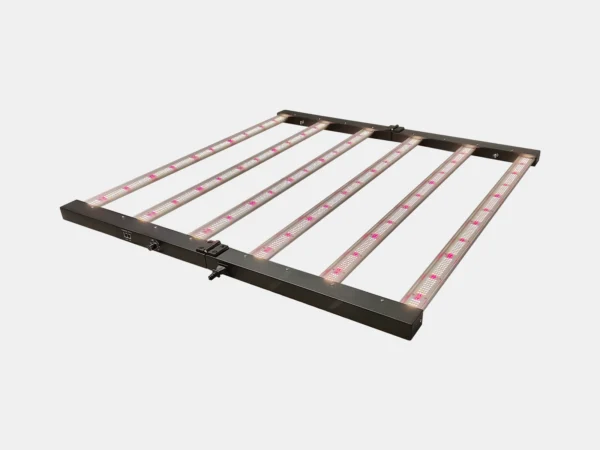

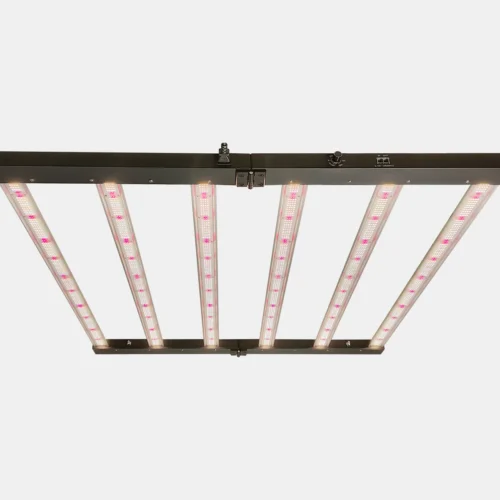

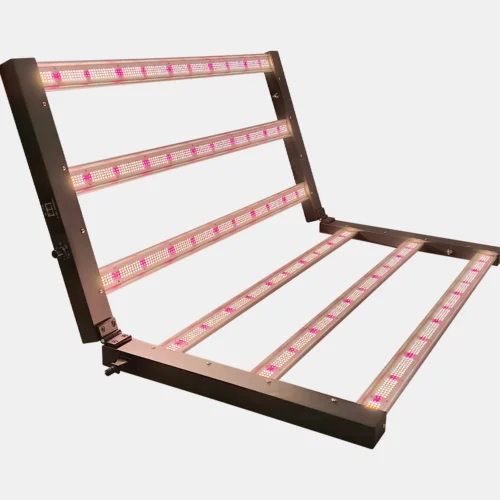

Product Specifications:
| Product Name | 720W LED Grow Light |
|---|---|
| Model number | STG-720W-F-02 |
| Power | 720W |
| Input voltage | AC198-264V |
| LED Brand | Epistar 2835 and 660nm （348PCS/Bar） |
| LED Driver | CE Driver |
| Lumen | 108,000LM |
| Lumen efficiency | 150LM/W |
| CRI | >75 |
| PPF | 1764μmol/S |
| EFF | 2.45μmol/J |
| Color | Full spectrum white light + 660nm Plant red light (Customization is supported, please contact us.) |
| Coverage | 5ft×5ft |
| Mounting height | ≥ 6″ (15.2cm) Above canopy |
| Supplementation time | 12-15H/day |
| PF | >0.92 |
| Lamp size | 1058*1085*42mm |
| Angle | 120° |
| Housing color | Black, with 2M plug |
| Material | Aluminum |
| IP | IP54 (Indoor using) |
| Lifespan | >50,000H |
| N.W | 6.08KG/PC |
| Working Temperature | -37°C~+55°C |
| Operating Humidity | <95% |
| Storage Temperature | -40°C~+80°C |

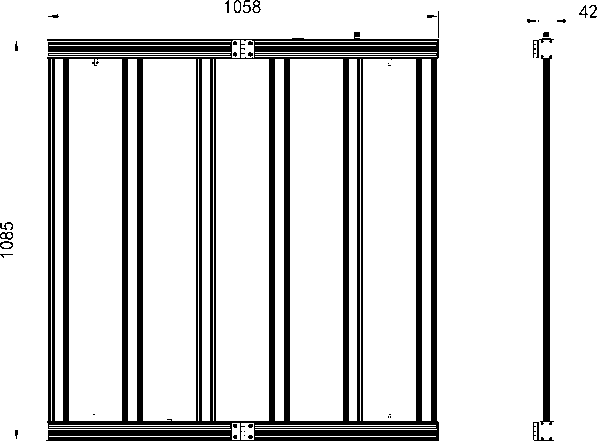

Dimension (mm):

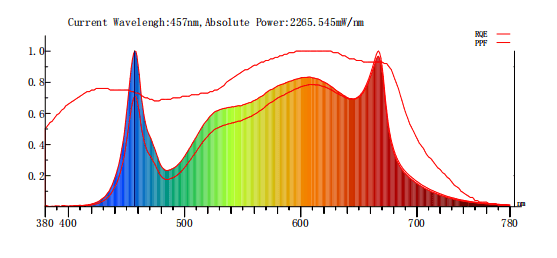

Spectrum:
Tip: Customization is supported, please contact us.

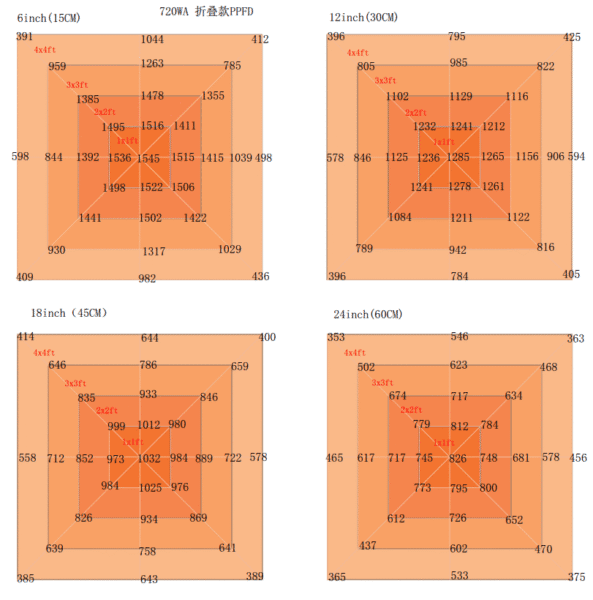

PPFD Distribution:
Installation:
1. Hanging the lamp on the ceiling or othe secure places with lifting rope.
2. Connecting the wires from driver to the lamp.
Note: The connector male plug arrow is aligined withe the female plug arrow.
3. Connecting the plug to the socket connect the plug to the power source.
Package:
| Box | QTY. | Size | N.W/CTN | G.W/CTN |
| box | 1PC | 1145*105* 594mm | 6.08KG | 8.2KG |
Packing List:
