Product Specifications:
| Product Name | 1500W LED Grow Light |
|---|---|
| Model number | STG-1500W-F-01 |
| Power | 1400W |
| Input voltage | 100-277VAC 50/60Hz |
| LED Brand | Epistar and 660nm (540pcs per bar) |
| LED Driver | UL Driver |
| Lumen | 240000LM |
| Lumen efficiency | 160LM/W |
| CRI | 3500K |
| PPF | 4350μmol/S |
| EFF | 2.9μmol/J |
| Color | Samsung 281B(432pcs) + 660nm Red light(52pcs) + 460nm blue(32pcs) + IR(14PCS) + UV(8PCS) (Customization is supported, please contact us.) |
| Coverage | 6ft×10ft |
| Mounting height | ≥ 6″ (15.2cm) Above canopy |
| Supplementation time | 16-20H/day |
| PF | >0.95 |
| Lamp size | 2460*1085*51mm |
| Angle | 120° |
| Housing color | Black, with 2M plug |
| Material | Aluminum + Fe |
| IP | IP54 (Indoor using) |
| Lifespan | >50,000H |
| N.W | 21.4KG/PCS |
| Working Temperature | -37°C~+55°C |
| Operating Humidity | <95% |
| Storage Temperature | -40°C~+80°C |

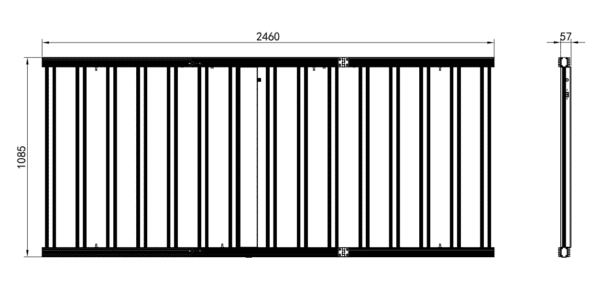

Dimension (mm):

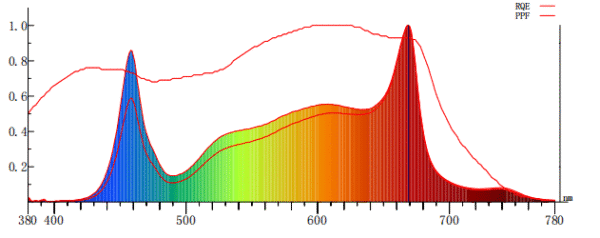

Spectrum:
Tip: Customization is supported, please contact us.

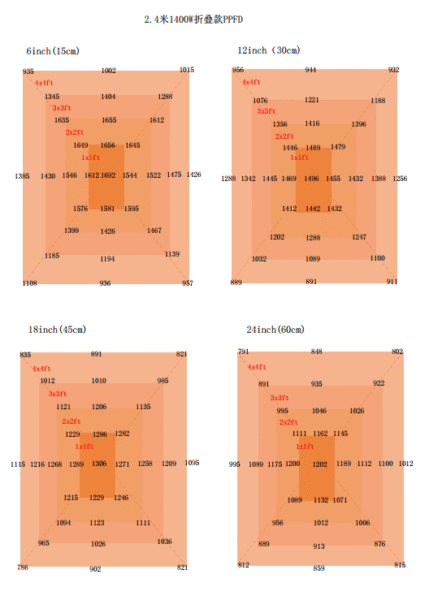

PPFD Distribution:
Installation:
1. Hanging the lamp on the ceiling or othe secure places with lifting rope.
2. Connecting the wires from driver to the lamp.
Note: The connector male plug arrow is aligined withe the female plug arrow.
3. Connecting the plug to the socket connect the plug to the power source.
Package:
| Box | QTY. | Size | N.W/CTN | G.W/CTN |
| box | 1PC | 114.5*18.5*89.5 CM | 21.4 KG | 23.3KG |
Packing List:
