Product Specifications:
| Product Name | 1000W LED Grow Light |
|---|---|
| Model number | STG-1000W-D |
| Power | 1000W |
| Input voltage | 100-277VAC 50/60Hz |
| LED Brand | Samsung 281b and Epistar (340pcs per bar) |
| LED Driver | SOSEN UL CUL Driver |
| Lumen | 160,000LM |
| Lumen efficiency | 160LM/W |
| CCT | 3500K |
| CRI | >75 |
| PPF (380-780nm) | 2800μmol/S |
| EFF | 2.8μmol/J |
| Color | Full spectrum white light + 660nm Plant red light + 395nm light + 730nm IR light (Customization is supported, please contact us.) |
| Coverage | 6ft×6ft |
| Mounting height | ≥ 6″ (15.2cm) Above canopy |
| Supplementation time | 16-20H/day |
| PF | >0.95 |
| Lamp size | 1090*1070*143mm |
| Angle | 120° |
| Housing color | White, with 2M plug |
| Material | Aluminum + PC |
| IP | IP54 (Indoor using) |
| Lifespan | >50,000H |
| N.W | 17KG/PC |
| Working Temperature | -37°C~+55°C |
| Operating Humidity | <95% |
| Storage Temperature | -40°C~+80°C |

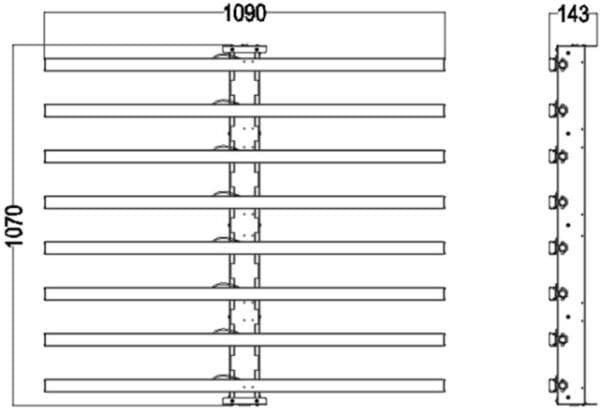

Dimension (mm):

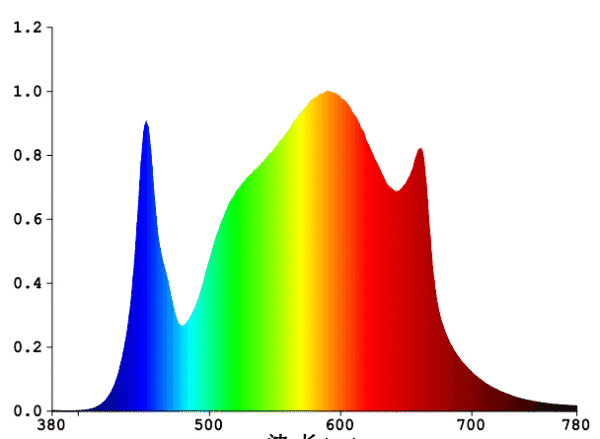

Spectrum:
Tip: Customization is supported, please contact us.

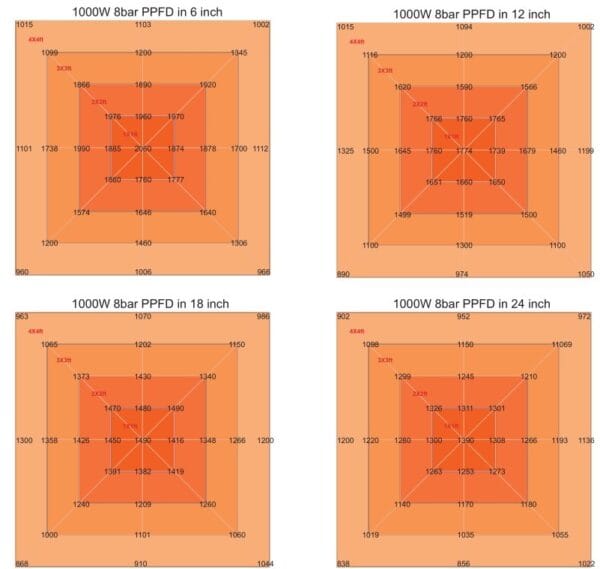

PPFD Distribution:
Installation:
1. Install the lifting rope on the bracket first, then hang the lifting rope to the ceiling..
2. As per above picture, insert each bar to each socket.
3. Please tear the film before lighting up.
4. Connect the plug to the socket, connect the plug to the power source.
Package:
| Box | QTY. | Size | N.W/CTN | G.W/CTN |
| box | 1PC | 117*42*15.5 CM | 17.0KG | 19.0KG |
Packing List:
