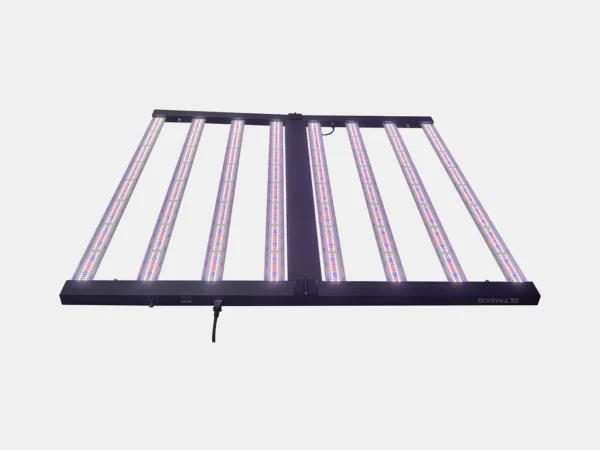

800W Plant Grow Light for 4*4ft Commercial Cultivation
The 800W foldable LED grow light represents far more than a simple increase in wattage; it delivers a qualitative leap forward in optical uniformity, peak output capabilities, and costs associated with logistics and deployment (its foldable design).
800W Foldable Growing Lights Design Parameters
Optical and Radiometric Parameters
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Total radiated power(system PPF) | 2240 – 2320 µmol/s | The integrating sphere test results show strong output. |
| System lighting effects(system PPE) | 2.8 – 2.9 µmol/J | High-efficiency output, converting every watt of electrical energy into effective photons. |

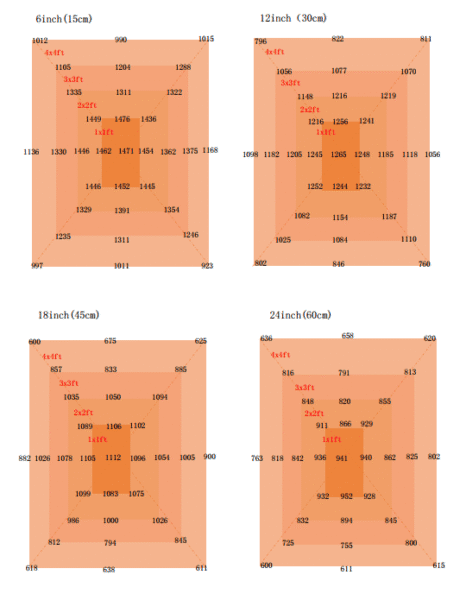

| Central peak luminous intensity(max PPFD) | >1400 µmol/m²/s | At a height of 12 inches (30cm), 1200ppm+ CO2 must be introduced. |
| Core coverage area(core footprint) | 4 × 4 ft (1.2m × 1.2m) | Eight LED strips are densely arranged to achieve impeccable uniform light distribution within a 4×4 area. |
| LED chip matrix(diode array) | Samsung + Osram | High-efficiency diode chips from leading global manufacturers |

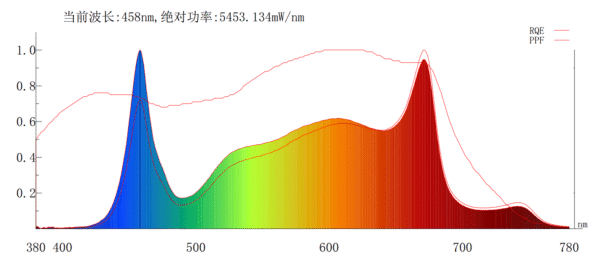

| Spectral configuration(spectrum) | Red-enhanced full spectrum | The relative radiation intensity in the 660nm deep red band was enhanced to increase yield during the flowering period. |
Electrical Parameters
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Actual system power consumption(AC Input Power) | 800W ± 3% | Full load output power consumption |
| Input voltage | 100-277V AC or347-480V AC | High-voltage power distribution systems covering the mainstream of commercial greenhouses in North America |
| Power factor | >0.96 | Ultra-loEfficient electrical design reduces line loss |
| Total Harmonic Distortion (THD) | < 10% | Meets advanced industrial access standards |
| Dimming protocol | 0-10V / Daisy Chain | Built-in dual RJ interfaces support zero-delay linkage control of up to 100 lights. |
| Number of cascades(daisy chain) | A single loop can support a maximum of 60-100 nodes. | An isolated dimming circuit is used to ensure that the signal does not attenuate over ultra-long distances. |
Structure and Thermal Management
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |

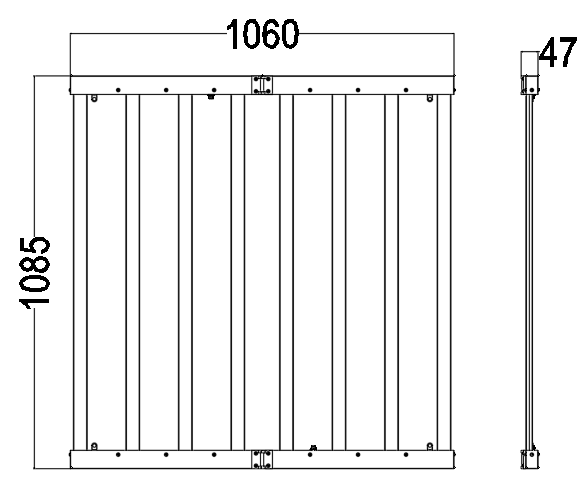

| Dimensions | Length 1.1m × Width 1.1m × Height 0.07m | Unfolded dimensions; extremely thin, suitable for low-headroom operations. |
| Net weight | Approx. 14–16 kg | Includes high-efficiency independent/split drive power supply |
| Bar count | 8 Bars | Significantly narrows the blind spot and eliminates the traditional center-to-edge PPFD gap. |
| Thermal design | Heavy-duty thick aluminum alloy passive convection heat dissipation | The eight LED strips disperse the heat source, resulting in extremely low operating temperature on the lamp surface. |
| BTU/h | Approx. 2Approximately 2730 BTU/h | Precision calculation of the air conditioning and ventilation system for commercial farms |
| Ingress protection | IP66 | Heavy-duty waterproof and dustproof design, suitable for automated greenhouse sprinkler systems. |
Business and Engineering Compliance
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Optical transmission maintenance rate(Lifespan L90) | >54,000 hours | Lifetime guarantee to maintain high PPE output |
| Warranty | 5-Year Limited Warranty | The mean time between failures (MTBF) of core components is extremely long. |
| Safety certification(safety standard) | UL8800 (Horticultural lighting safety certification), CE | Complies with the most stringent whole-light safety standards in North America for commercial plant factories. |
| Energy efficiency certification(energy rebate) | DLC 5.1 Premium Certification | It is extremely easy to pass the rebate review by European and American power companies and get cashback. |

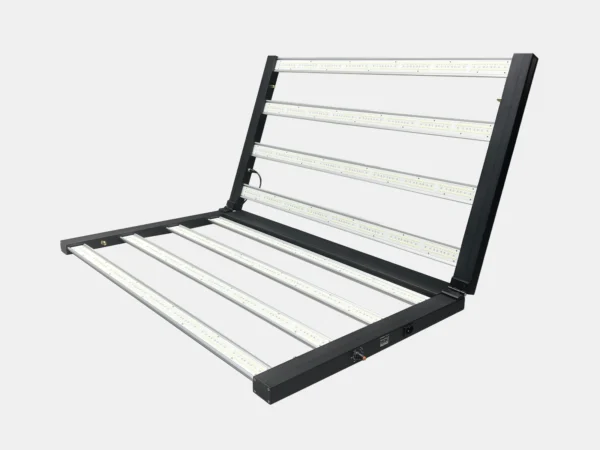

| Packaging | 180° Foldable Heavy-Duty Cushion (Foldable Design) | Key B2B selling point: Volumetric weight halved, CBM for ocean freight reduced by over 45%. |

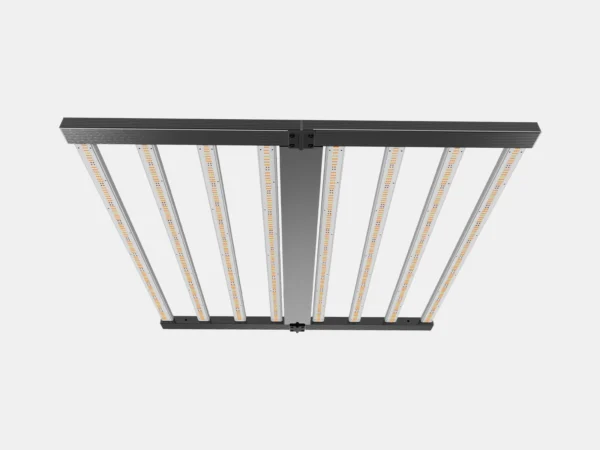

Maximize Your 4×4 Canopy: The 800W High-Density Matrix LED Grow Light

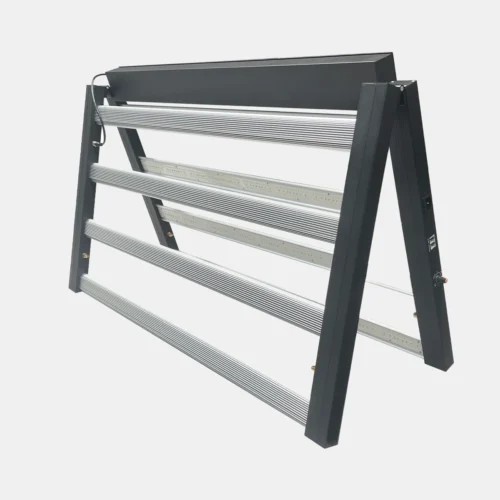

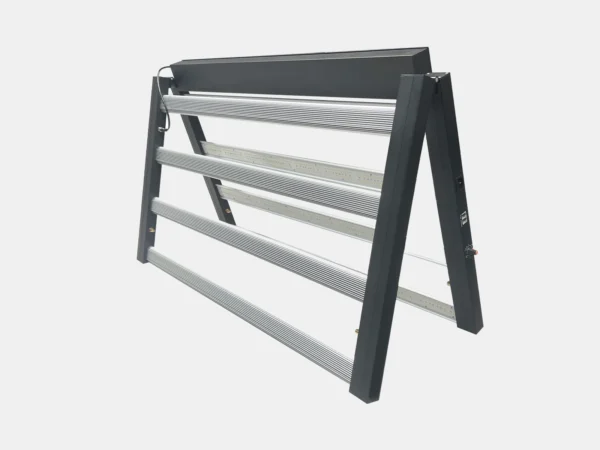

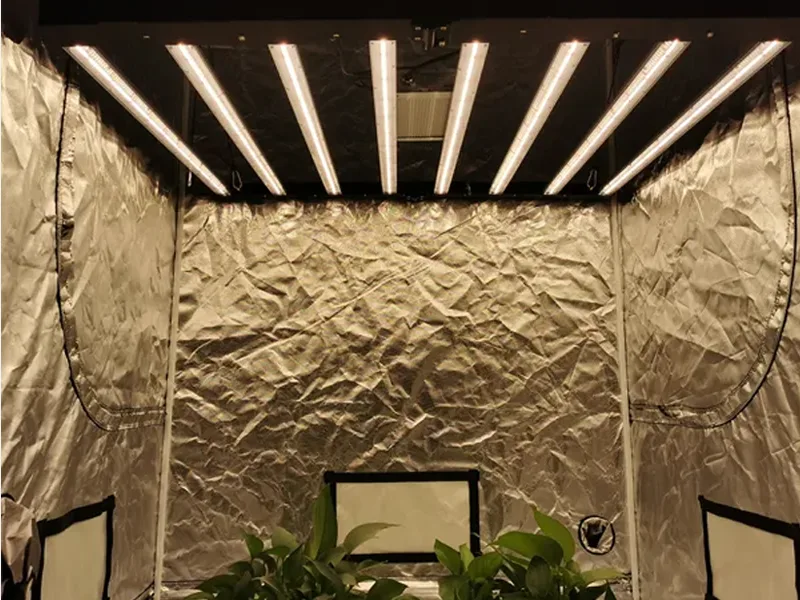

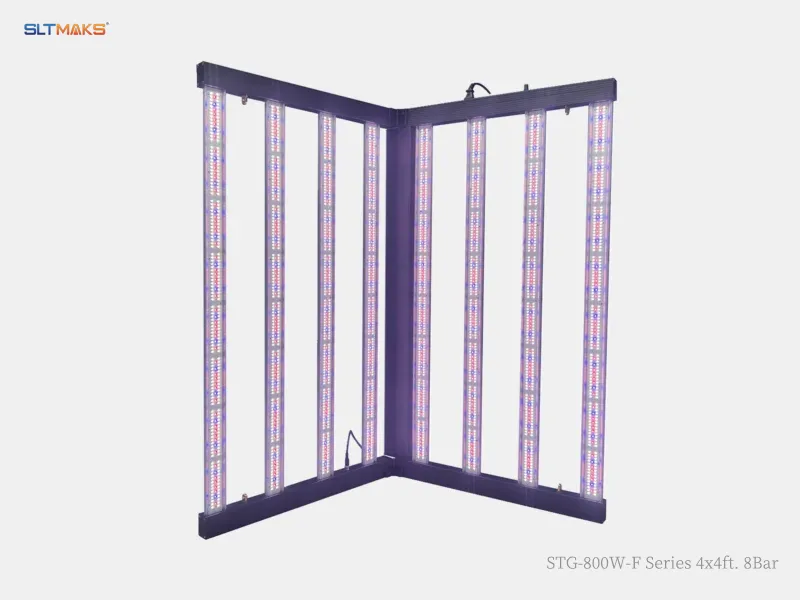

Integrating eight high-efficiency LED strips into a standard 4×4 footprint, this innovative design breaks traditional spacing limitations, achieving true edge lighting coverage. The high-power 800W drive penetrates deep into the plant canopy, providing ample photosynthetic energy during flowering for higher yields. Featuring a 180° folding design, this light requires no manual installation of the strips and is ready to use out of the box. Whether used on commercial mobile workbenches, vertical shelves, or standard growing tents, it reduces installation time and costs for users.
Eliminate Edge Light Loss: Ensure Every Plant Receives the Same Photosynthetic Energy
Within a standard 4×4 space, the number of light strips has been increased from 6 to 8, minimizing the difference in light intensity between the center and edges. This ensures that plants in corners receive the same photosynthetic energy, meeting the demanding requirements of high-value crops such as cannabis and valuable medicinal herbs.
- Densely distributed light sources effectively eliminate the light intensity gap between the center and edges, ensuring that plants in corners receive the same photosynthetic energy as those in the center.
- Uniform light distribution avoids the common problem of “leggy growth in the center and stunted growth on the sides.” By standardizing growth rates, the yield ratio of Grade A crops throughout your growing facility will be significantly increased.
- Our comprehensive full-spectrum output, specifically tuned for photosensitive varieties, precisely triggers the production of secondary metabolites, thereby maximizing crop potency and terpene spectrum.
Precision Spectrum Management: Engineered for High-Value Cultivars
Our team designed full-spectrum grow lights that go beyond basic photosynthesis to actively guide plant morphology, thereby maximizing crop quality.
- We integrate premium 660nm deep red diodes to hit the peak absorption of chlorophyll a and b. This heavily stimulates floral development during the bloom phase, which can swell flower mass, density, and overall harvest weight.
- The combination of cool and warm white light promotes robust stem growth. At the same time, it prevents leggy growth and ensures a sturdy canopy capable of supporting heavy, dense, spike-like flower clusters.
- By optimizing spectral balance, this grow light’s matrix activates the Emerson effect, accelerating the plant’s metabolic rate and shortening the overall flowering cycle, while simultaneously maximizing yield and enhancing terpene profiles.
Grow Lights Accessories

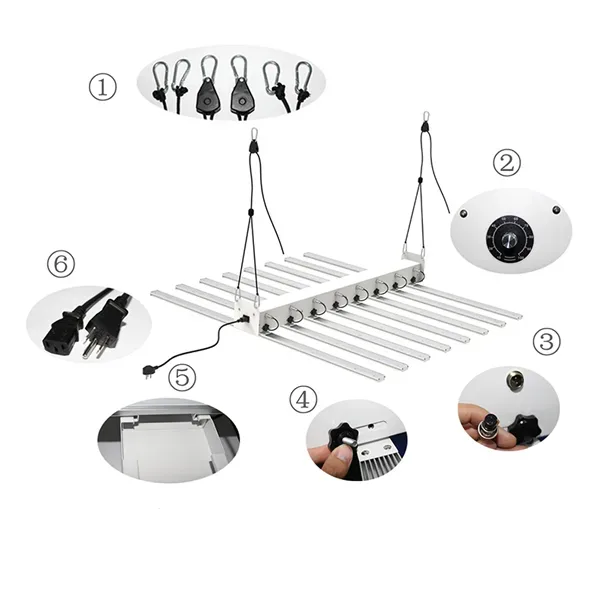

LED Grow Light Accessories
All accessories are included in the box; it’s ready to use right out of the box.

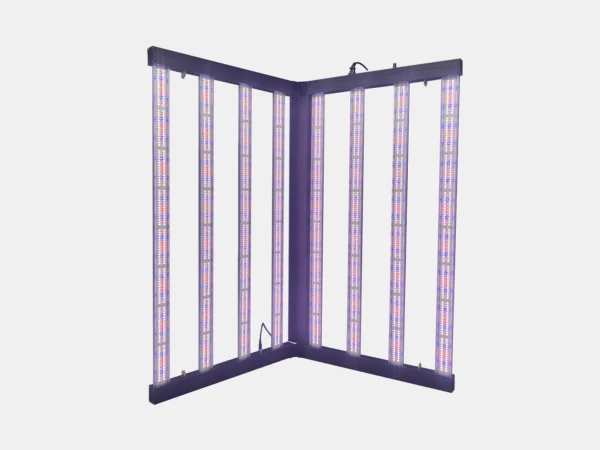

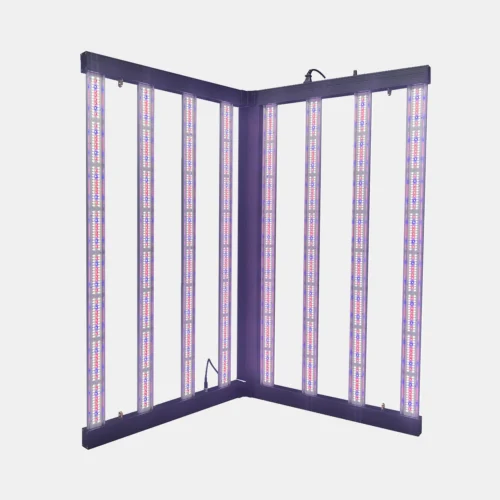

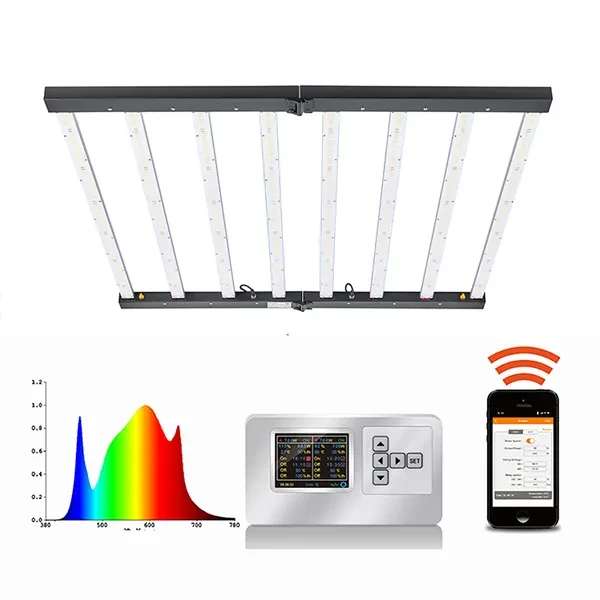

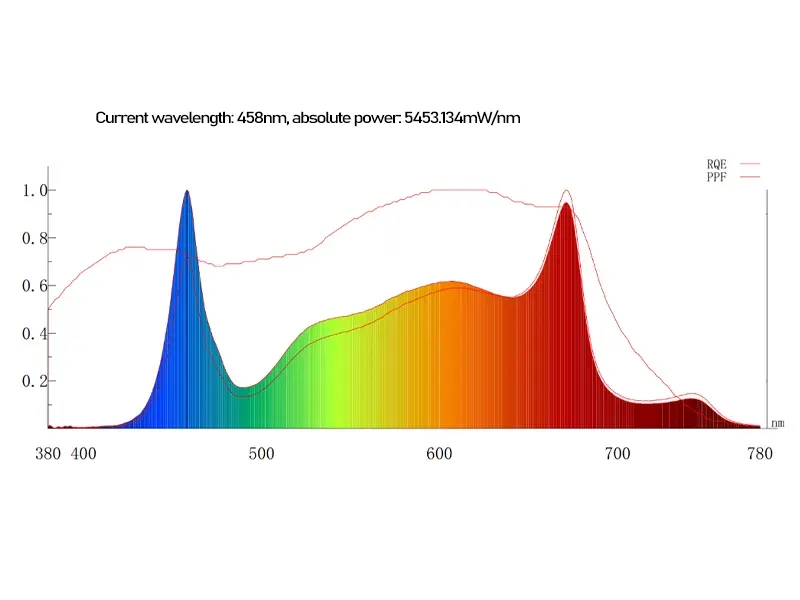

Full Spectrum Testing
Supports spectrum tuning, timed switching, and multi-lamp linkage.

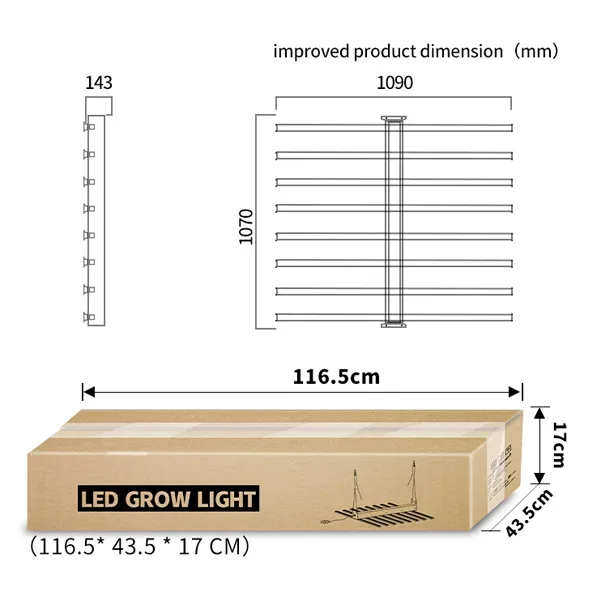

LED Plant Light Packaging
Compact rectangular cardboard box, scientifically designed for shock resistance
Frequently Asked Questions
Can this 800W LED grow light replace a traditional 1000W HPS system?
Yes, absolutely. Our 800W LED grow light is engineered to deliver higher photosynthetic photon efficacy (PPE) while consuming significantly less power than a standard 1000W HPS. By optimizing spectrum distribution and maximizing edge light coverage, it not only reduces your HVAC cooling loads and electricity costs but also enhances overall crop yield and secondary metabolite consistency in a 4× 4 ft or 5×5ft canopy.
How does the matrix design eliminate edge light loss and ensure uniformity?
Traditional lights often suffer from hot spots in the center and drastic light drop-offs at the perimeter. Our high-density matrix bar layout features custom optical calibration and precision diode positioning. This engineering design ensures absolute uniformity across the entire 4× 4 coverage area, eliminating weak edge zones so that plants at the corners grow at the exact same rate and quality as those directly underneath the center.
What engineering and commercial compliance certifications do these fixtures carry?
To ensure seamless integration into commercial cultivation facilities and compliance with local energy rebate programs, our fixtures undergo rigorous industrial-grade testing. They carry full commercial and safety compliance certifications (such as DLC, UL/ETL, and CE standards) covering driver reliability, thermal management under continuous 24/7 load, and structural IP-rated protection against humid greenhouse environments.
What specific quality control and packaging standards do you implement for bulk global shipping?
We implement a strict 100% inspection protocol, where every single fixture undergoes a 48-hour continuous aging test and full spectrum verification before leaving the factory. For international transit, we utilize drop-tested, high-strength reinforced cartons with custom high-density molded foam to guarantee zero-defect arrival. Our logistics team handles professional container loading to maximize spatial efficiency and safeguard your bulk investment during maritime or air freight.
Planning a 800W Setup?
Let our engineers design a complimentary commercial lighting plan for your facility.
Receive your custom Dialux light simulation & PPE layout report within 24 hours.
