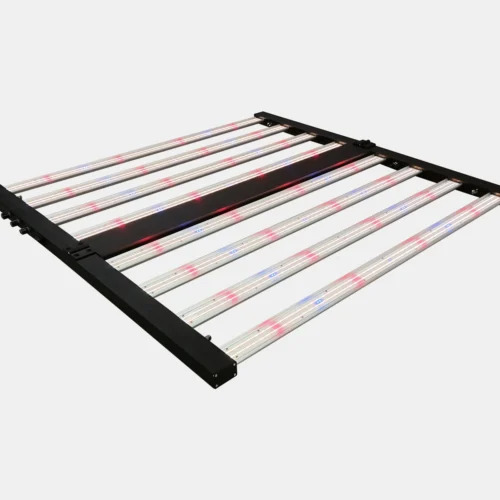

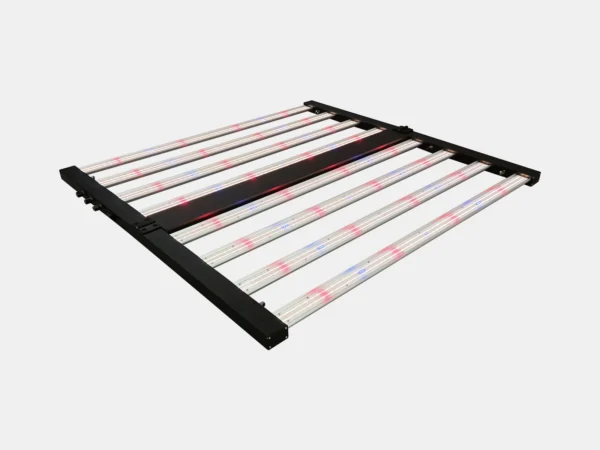

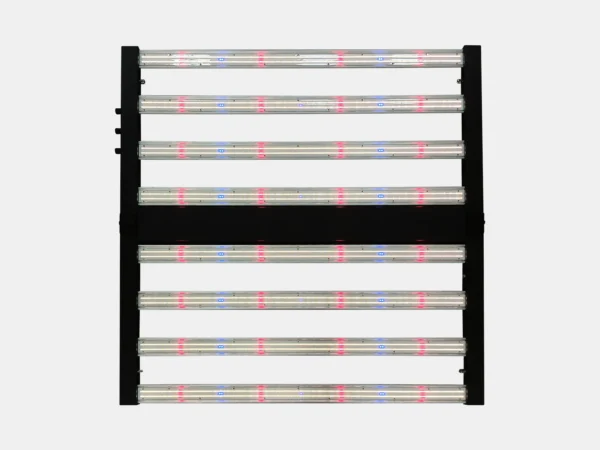

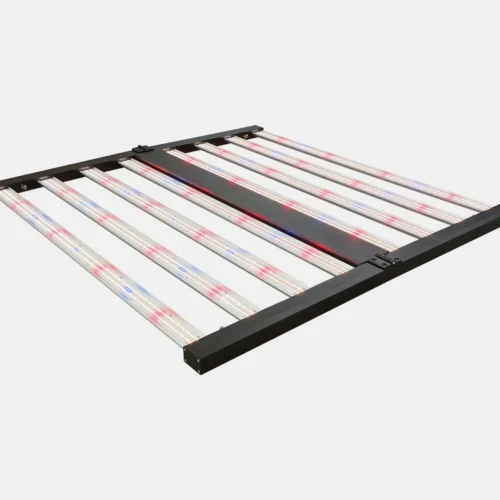

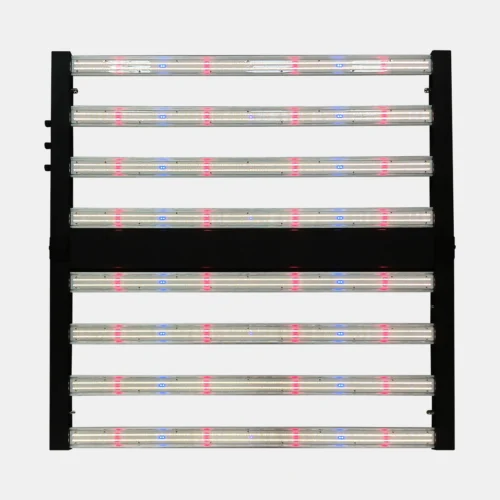

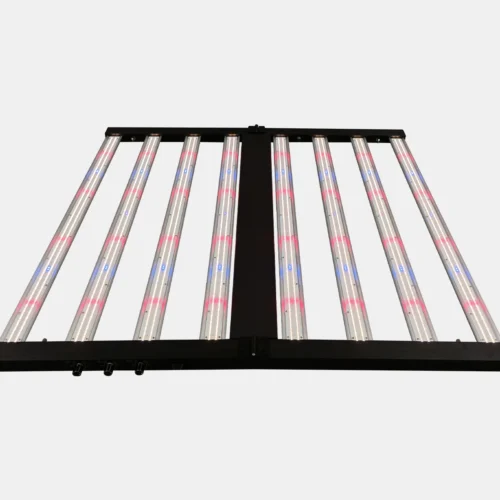

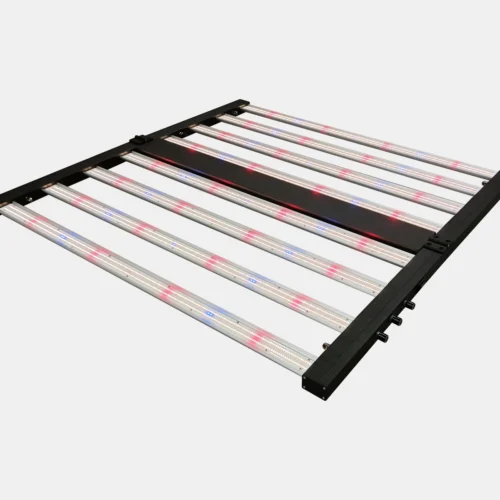

1000W Full Spectrum Grow Light of Foldable Series
Engineered for professional cultivation, the STG-1000W-F series delivers high-intensity, full-spectrum illumination tailored for a 4x6ft footprint. Featuring a heavy-duty 12-bar foldable design, it ensures uniform light distribution and maximum canopy penetration to boost growth and maximize your yield.
1000W Full Spectrum Grow Light of Foldable Series Design Parameters
Optical and Radiometric Parameters
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Total radiated power(system PPF) | 2800 – 2900 µmol/s | The absolute mainstay data for replacing the 1000W DE HPS (high-pressure sodium lamp) |
| System Lighting Effects(system PPE) | 2.8 – 2.9 µmol/J | Top-level photoelectric conversion efficiency |
| Central peak luminous intensity(max PPFD) | > 1800 µmol/m²/s | Hanging at a height of 12 inches, a mandatory CO2 concentration of 1500ppm+ is required. |
| Core coverage area(core footprint) | 4 × 6 ft (1.2m × 1.8m) | For continuous rectangular moving seedbeds, it perfectly eliminates ineffective light spillage in the aisles. |
| LED chip matrix(diode array) | Top-tier high-power white light + 660nm deep red light | High-density lighting layout, extremely low load per LED, and extremely slow light decay. |
| Spectral configuration(spectrum) | Medicinal full spectrum | Extremely high red and blue light photon flux, targeted activation of secondary metabolites during flowering. |
Electrical Parameters
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Actual system power consumption(AC input power) | 1000W ± 5% | Constant current drive, actual power output under full grid load |
| Input voltage | 277V – 480V AC (or 120-277V) | It is recommended that commercial plants use high-voltage input to significantly reduce the diameter of engineering cables. |
| Power factor | > 0.95 | Fully compliant with industrial-grade high-power grid-connected safety technical specifications |
| Total Harmonic Distortion (THD) | < 10% | Significantly reduces harmonics, protecting the stability of the workshop’s PLC control system. |
| Dimming protocol | 0-10V / Intelligent Environmental Control Bus Dimming | It can be linked with the main control system of the large-scale intelligent greenhouse to simulate stepped light intensity. |
| Number of cascades(daisy chain) | A single loop can support a maximum of 100 nodes. | Impedance isolation technology is used to ensure that the dimming synchronization of the matrix light group is absolutely consistent. |
Structure and Thermal Management
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Dimensions | Length 1.8m × Width 1.2m × Height 0.09m | Unfolded physical dimensions; ultra-wide rectangular array design |
| Net weight | Approximately 19-22 kg | Heavy industrial equipment must be installed with suspension systems that meet safety load standards. |
| Bar count | 10 Bars | Ten ultra-long light strips are arranged in a high density, allowing photons to penetrate directly to the bottom of the canopy. |
| Thermal design | Thickened 6063 aviation aluminum, anodized passive heat dissipation | Physical passive heat dissipation has a huge surface area, completely eliminating the risk of fan failure. |
| BTU/h | Approximately 3412 BTU/h | It has a significant impact on HVAC systems; it is recommended to install a separate power supply to divert the heat source. |
| Ingress protection | IP65 / IP66 | It can operate stably in environments with high humidity, water vapor condensation, and sulfur fumigation. |
Business and Engineering Compliance
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Optical transmission maintenance rate(lifespan L90) | >54,000 hours | Meeting the financial requirements of large-scale capital agricultural projects for long-cycle equipment depreciation |
| Warranty | 5-year global all-inclusive warranty | Commercial compensation clauses covering chip light decay, driver circuit failure, etc. |
| Safety certification(safety standard) | UL8800, ETL, CE | Authoritative certification is essential for large-scale centralized procurement and industrial and commercial insurance underwriting. |
| Energy efficiency certification(energy rebate) | DLC 5.1 Premium (QPL) | Large North American plantation licensees are in dire need of eligibility to receive substantial government electricity rebates. |
| Packaging | Heavy-duty foldable double-layer corrugated export box | Solving the transportation pain points of 1.8-meter-tall vehicles and optimizing overseas local delivery costs. |

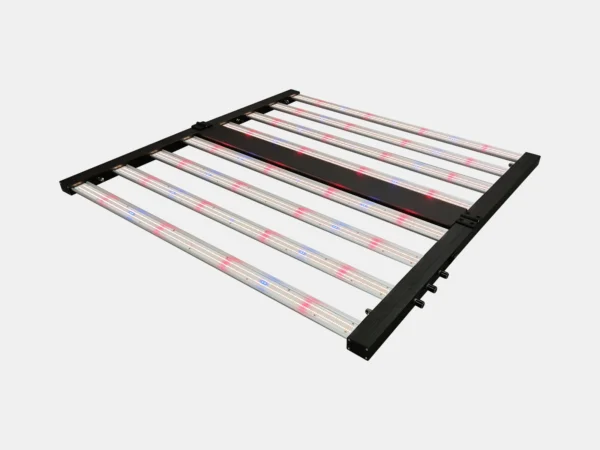

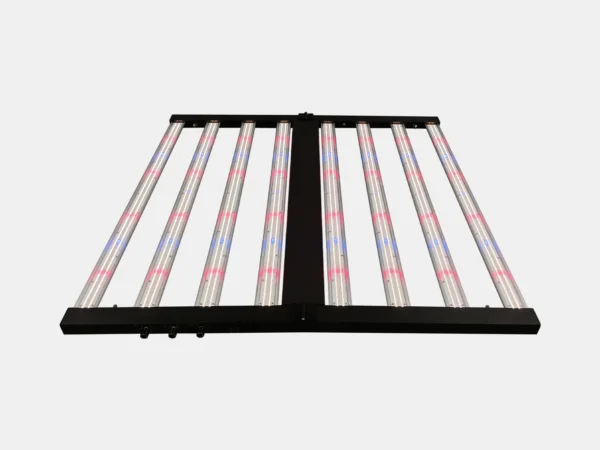

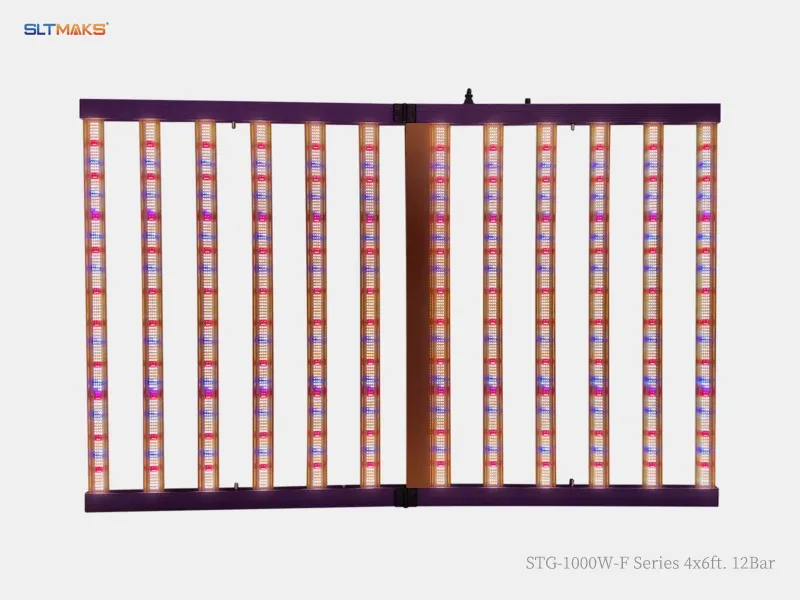

1000W Flagship 12-Bar Array: Redefining Extreme Uniformity in 4×6 Footprints
Engineered for the rigorous uniformity demands of commercial cultivation, we have integrated an innovative high-density 12-bar matrix into an industrial-grade 4x6ft foldable frame.
- Eliminate edge light decay: The high-density light distribution ensures photons evenly blanket the entire cultivation area, delivering identical Photosynthetic Active Radiation (PAR) to edge and center plants alike.
- Highly consistent yields: Extreme light uniformity eliminates growth blind spots, ensuring consistent plant height, canopy width, and ultimate yields across every crop batch to maximize commercial ROI.

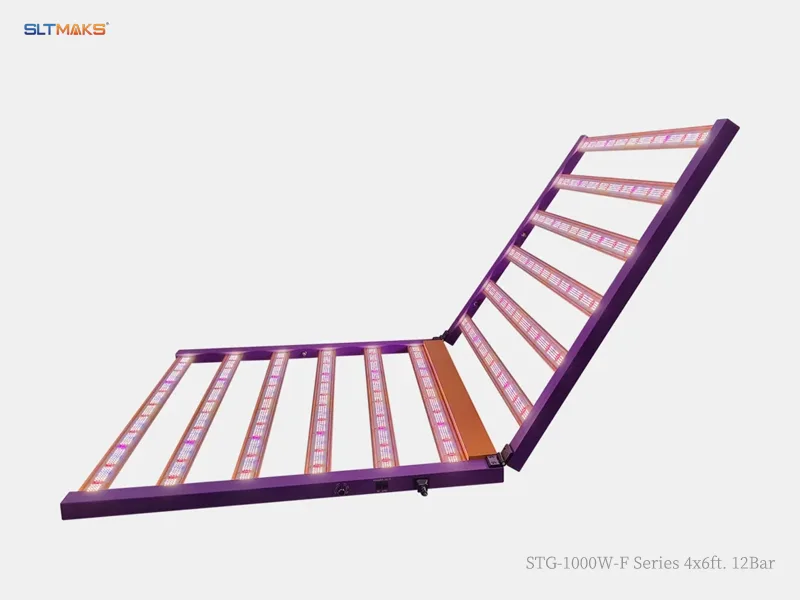

- Plug-and-play foldable design: The robust hinged structure maintains an ultra-dense light-emitting surface while optimizing packaging volume, significantly reducing shipping and facility deployment costs for large-scale projects.
Breakthrough Thermal Architecture: Safe Close-to-Canopy Operation
The denser bar configuration is not merely about optical uniformity; it is the core engineering strategy for mitigating heat accumulation in a high-power 1000W fixture.
- Decentralized thermal management: By distributing 1000 watts of massive power across 12 independent aluminum bars, the thermal load per bar drops drastically, pushing passive cooling efficiency to its absolute peak.
- Zero risk of canopy burn: Exceptional low-temperature surface performance allows the fixture to operate at an extremely close distance to the plant tops. This maximizes photon interception without triggering heat stress or foliage burn.
- Unlock vertical space: The ultra-low heat radiation profile makes this the ideal solution for multi-tier vertical racks and space-constrained environments, eliminating the need for excessive overhead clearance for heat dissipation.

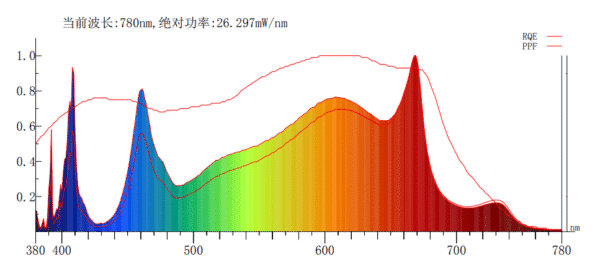

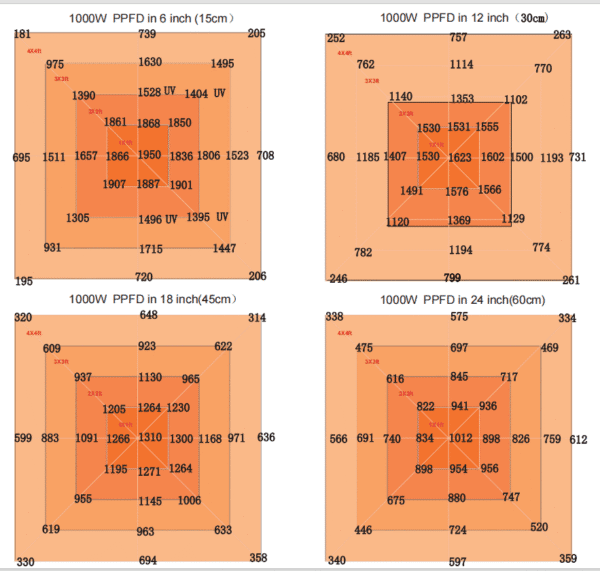

Optimized PPFD Distribution & Light Recipe Integration
Full Spectrum Power for 1000W Commercial Scaling
Harness the full potential of your canopy with our meticulously engineered 1000W custom-tailored light recipe. By integrating enhanced 660nm deep red with a balanced full-spectrum white light, this fixture delivers the exceptionally high PPFD levels required for dense flowering and rapid vegetative growth. The massive 1000W output ensures superior deep-canopy light penetration, driving uniform and vigorous growth across your entire footprint, ultimately maximizing your harvest weight and crop quality.
Outgoing Inspection and Packaging for Full Spectrum Grow Light
100% Rigorous Quality Inspection
Every LED grow light undergoes 48-hour aging tests and strict optical calibration before packing to ensure zero-defect delivery
Optimized Standardized Packaging
Custom high-density foam and reinforced cartons designed to withstand international transit and reduce shipping volume.
Safe & Efficient Bulk Shipping
Experienced container loading and logistics coordination to maximize space utilization and guarantee on-time global logistics.
Frequently Asked Questions
What is the targeted coverage area of the STG-1000W-F Series, and what are the benefits of its 12-bar multi-light bar structure?
The STG-1000W-F Series is precisely engineered for a 4×6 ft. (4x6ft.) cultivation footprint. Featuring a premium 12-bar array (12-Bar Array), this configuration redefines “extreme uniformity” across the entire canopy, successfully eliminating typical hot spots or low-light drop-offs at the margins. Furthermore, the fixture utilizes a balanced center-fold engineering design, which significantly reduces shipping volume and enables rapid on-site assembly and hanging.
How does the 1000W high-power fixture handle thermal management, and can it be safely mounted close to the plant canopy?
Despite delivering a powerful 1000W output, the fixture integrates a breakthrough passive thermal architecture that guarantees safe close-to-canopy operation. By incorporating highly efficient aerodynamic heat sinks and advanced material science, the structural operating temperatures are kept exceptionally low. This allows cultivators to hang the fixture much closer to the plant canopy without any risk of thermal bleaching or leaf burn, maximizing photon utilization efficiency and deep lower-canopy penetration.
What are the primary advantages of the STG-1000W-F spectral profile and PPFD distribution for commercial crop cycles?
The fixture features a meticulously optimized PPFD distribution and a specialized light recipe integration. The full-spectrum configuration provides intense blue wavelengths to drive robust vegetative growth and tight internodal spacing, alongside robust red and deep-red peaks to accelerate photosynthetic rate and biomass accumulation during the flowering/fruiting stages. The spectral energy is perfectly smoothed to bridge these critical peaks, ensuring deep uniform light delivery that drives consistent yields and high-quality secondary metabolites.
How does the manufacturer guarantee build quality and transit safety for high-volume commercial shipments?
Every commercial batch undergoes a strict multi-tier fulfillment and quality assurance framework:
100% Rigorous Quality Inspection: Each fixture undergoes intensive burn-in aging tests, optical radiometric verification, and comprehensive electrical parameter calibration before leaving the factory floor.
Optimized Secure Packaging: Customized, heavy-duty anti-shock and drop-tested protective packaging materials are used to fully secure the multi-bar framework.
Safe & Streamlined Shipping: Shipments are handled via specialized industrial logistics networks, guaranteeing regulatory compliance, intact arrival, and seamless delivery to your facility or warehouse.
