1300W Extreme Output Foldable Grow Light Full Spectrum
Power meets flexibility. The STG-1300W-F Series delivers massive 1300W full-spectrum output across a 4x8ft footprint. Its innovative 12-bar foldable structure ensures uniform light distribution, deep canopy penetration, and hassle-free setup. Boost your harvest and maximize efficiency—request a quotation today!
1300W Grow Light Full Spectrum Design Parameters
Optical and Radiometric Parameters
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Total radiated power(system PPF) | 3640 – 3770 µmol/s | Main output data that replaces multiple traditional HPS or low-wattage LED splicing units |
| System lighting effects(system PPE) | 2.8 – 2.9 µmol/J | True overall lamp energy efficiency including high power drive conversion losses |
| Central peak luminous intensity(max PPFD) | > 1500 µmol/m²/s | Hang at a height of 12 inches (30 cm); suitable for hanging at a height of 12 inches (30cm), and it is recommended to apply 1000-1200 ppm CO2 as a supplement. |
| Core coverage area(core footprint) | 4 × 10 ft (1.2m × 3.0m) | Rectangular asymmetrical light distribution perfectly matches continuous commercial mobile seedbeds, eliminating blind spots during splicing. |
| LED chip matrix(diode array) | Top-tier high-power white light + 660nm deep red light | Chips from leading global manufacturers ensure spectral consistency in ultra-large arrays. |
| Spectral configuration(spectrum) | Pharmaceutical-grade full-spectrum (Red-Enhanced) | Enhanced 660nm radiation flux, applicable throughout the entire life cycle, with a focus on tackling late-stage flowering and fruit enlargement. |
Electrical Parameters
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Actual system power consumption(AC input power) | 1300W ± 4% | Stable real-world power consumption at 100% full load operation |
| Input voltage | 277-480V AC (or 120-277V) | It is recommended that large CEA plants adopt high-voltage input to significantly reduce the diameter and copper loss of engineering cables. |
| Power factor | > 0.96 | Industrial-grade grid connection standards minimize reactive power losses in the power grid. |
| Total Harmonic Distortion (THD) | < 10% | Extremely low harmonic interference, protecting the workshop’s automated environmental control and PLC control bus. |
| Dimming protocol | 0-10V Continuous Dimming / Intelligent Control Bus | Supports external master control units for multi-It can seamlessly interface with mainstream commercial environment control systems to achieve stepped light intensity simulation. |
| Number of Cascades(daisy chain) | A single loop can support a maximum of 100 nodes. | Signal impedance isolation technology is used to ensure that the dimming timing of the matrix light group is absolutely consistent. |
Structure and Thermal Management
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Dimensions | 3.0m (length) × 1.2m (width) × 0.1m (height) | SThe 4×10ft extra-long and extra-wide rectangular geometric design eliminates unnecessary light leakage in the corridor. |
| Net weight | Approximately 24-28 kg | For heavy industrial equipment, the installation of suspension trusses must meet commercial safety load standards. |
| Bar count | 10 Bars (Wide-spacing, high-transmittance arrangement) | Increasing the spacing between the light strips significantly reduces the shading rate of top supplemental lighting on natural sunlight in the greenhouse. |
| Thermal design | Heavy-duty 6063 aerospace-grade anodized passive heat dissipation aluminum | Physical passive heat dissipation has a huge surface area, completely eliminating the risk of malfunctions caused by fan lifespan issues. |
| BTU/h | Approximately 4435 BTU/h | Provides HVAC engineers with precise calculations of ventilation and cooling loads for fully enclosed workshops. |
| Ingress protection | IP66 | Features excellent protection against water spray and high-humidity environments. Heavy-duty waterproof and dustproof, capable of withstanding the large-scale spraying operations and high humidity of commercial automated greenhouses. |
Business and Engineering Compliance
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Optical transmission maintenance rate(lifespan L90) | >54,000 hours | After 50,000 hours of continuous operation, the optical decay does not exceed 10%, meeting the depreciation requirements of high-standard projects. |
| Warranty | 5-Year Limited Warranty | Full coverage of driver power supply, LED modules, and core electrical cables. |
| Safety certification(safety standard) | UL8800, cETLus, CE, RoHS | Compliant with electrical regulations for market. UL8800 is the highest level of safety and environmental standard specifically for horticultural lighting in North America. |
| Energy efficiency certification(energy rebate) | DLC 5.1 Premium (QPL Qualification) | Helping large, legally licensed farms in North America quickly pass the energy conservation subsidy review by local power companies. |
| Packaging | Heavy-duty modular/folding industrial packaging | Avoiding the transportation challenges of an extra-long 3-meter fuselage, optimizing overseas local delivery and cross-border CBM costs. |

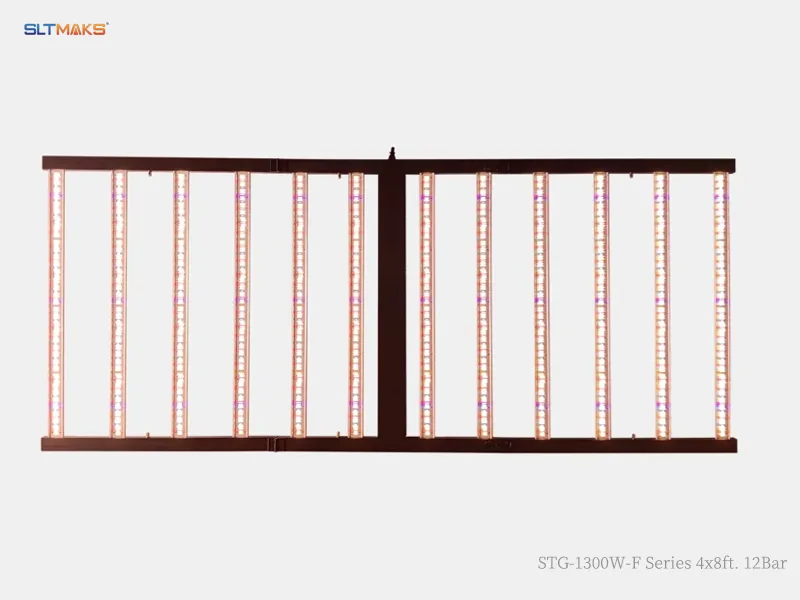

1300W of Relentless Power, Mastered by a 12Bar Matrix
Redefining high intensity and ultimate light uniformity for 4×8 canopies
Engineered for commercial cultivators who demand maximum yield without compromising quality, this 1300W LED fixture delivers a massive photon pump to your crop. By distributing this immense power across a high-density 12-bar array, we ensure that extreme light intensity never comes at the cost of uniformity.
- Deep canopy penetration: The formidable 1300W output drives exceptional PPFD levels deep into the lower canopy, unlocking the maximum yield potential of every plant in the footprint.
- Edge-to-edge uniformity: Our innovative 12-bar matrix eliminates central hotspots and perimeter dark zones. This structural advantage guarantees consistent growth rates and uniform development from corner to corner.
- Thermal stability at peak output: Constructed with robust aluminum profiles, the widened bar design maintains optimal operating temperatures. This ensures minimal diode degradation and long-lasting stability, even under relentless full-power cycles.

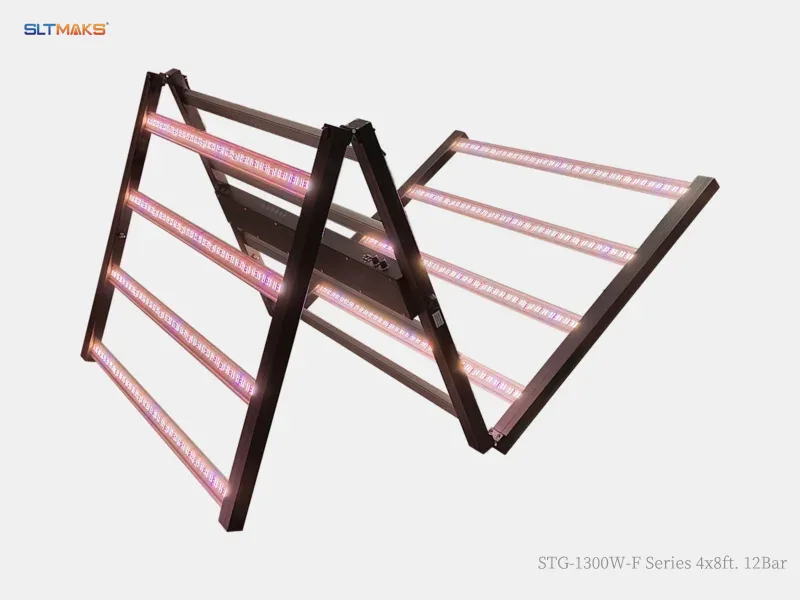

Smart Foldable Design for Scalable Commercial Deployment
The optimal balance between top-tier efficacy and logistics cost reduction
For large-scale cultivation facilities, freight and installation labor are critical bottom-line factors. We engineered an intelligent 180° folding mechanism that protects your profit margins before the lights are even turned on, making this the definitive choice for bulk procurement and mega-facility build-outs.
- Slashed shipping and storage costs: The 180-degree folding structure dramatically reduces packaging volume. This maximizes shipping container density, directly mitigating the high freight costs associated with international bulk orders.
- Streamlined, plug-and-play installation: Designed for rapid deployment, the fixture unfolds straight out of the box. A single technician can easily mount and level the 4×8 unit, significantly cutting down initial labor overhead during facility expansion.
- Maximum ROI for commercial projects: By pairing industry-leading hardware specifications with a logistics-friendly form factor, this fixture delivers an unparalleled return on investment for large commercial operations prioritizing both performance and operational efficiency.

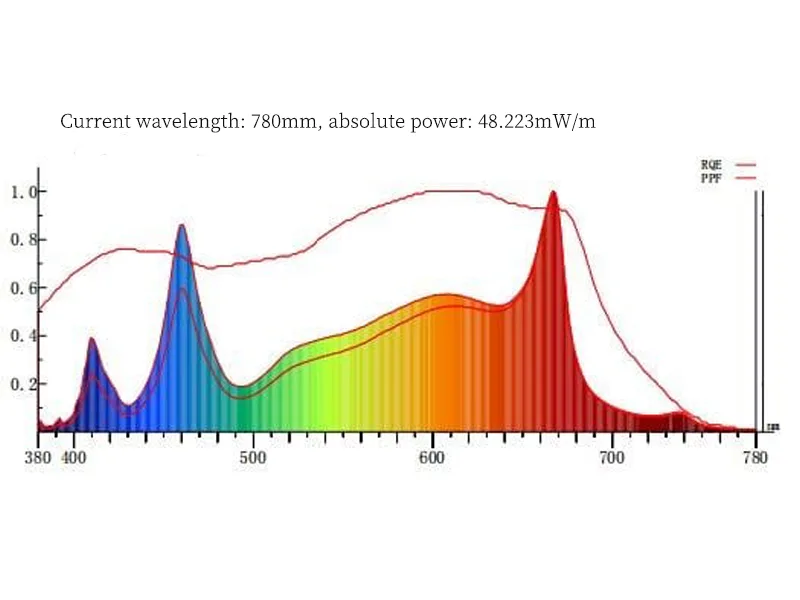

Optimized PPFD Distribution & Light Recipe Integration
Precision Spectral Control: The Anti-Stretching Formula for Commercial Consistency
In the critical seedling and cloning stages, excessive red light can lead to weak, elongated stems. Our STG-1300W-F series utilizes a targeted 5000K/6500K spectral solution, rich in blue light (400-500nm). This specialized light recipe effectively triggers cryptochromes to inhibit stem stretching, ensuring your seedlings develop compact, sturdy structures and robust root systems—the essential foundation for maximum commercial yield. Combined with our 10-bar design, this spectrum provides perfectly uniform, high-intensity light distribution across the entire 4x6ft coverage area.
Inspection, Packaging and Transportation
100% Rigorous Quality Inspection
Every LED grow light undergoes 48-hour aging tests and strict optical calibration before packing to ensure zero-defect delivery
Optimized Standardized Packaging
Custom high-density foam and reinforced cartons designed to withstand international transit and reduce shipping volume.
Safe & Efficient Bulk Shipping
Experienced container loading and logistics coordination to maximize space utilization and guarantee on-time global logistics.
Frequently Asked Questions
What are the main advantages of the STG-1300W-F Series grow light?
The STG-1300W-F Series features powerful 1300W output with a 12-bar matrix design. Its core advantages include a smart foldable design for easy commercial deployment, as well as optimized PPFD distribution and integrated light recipes to significantly enhance plant growth efficiency.
Is this grow light suitable for environments with limited space?
Yes, it is highly suitable. The series features a smart foldable design that allows it to be folded when not in use to save space, greatly simplifying installation, storage, and transportation for flexible deployment in commercial growing sites.
How does the STG-1300W-F perform in terms of structure and thermal management?
The fixture utilizes a robust, foldable metal frame structure. Regarding thermal management, it employs an efficient passive cooling design, ensuring the fixture maintains a low operating temperature during long-term use to extend the LED lifespan and ensure light output stability.
Does this product meet compliance requirements for commercial growing?
Yes, the product was designed with business and engineering compliance in mind. It meets relevant industry standards to ensure safe and compliant operation in various commercial application scenarios, making it a reliable choice for professional growers.
Planning STG-1300W-F Series 4x8ft. 12Bar Grid Setup?
Let our engineers design a complimentary commercial lighting plan for your facility.
Receive your custom Dialux light simulation & PPE layout report within 24 hours.
