1000W Foldable House Plant LED Grow Light
A deep-canopy lighting solution tailored for tall plants, unlocking the potential of lower-level flower buds and comprehensively boosting overall yield per unit area.
1000W Foldable House Plant LED Grow Light Design Parameters
Optical and Radiometric Parameters
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Total radiated power(System PPF) | 2800 – 2900 µmol/s | The absolute mainstay data for replacing the 1000W DE HPS (high-pressure sodium lamp) |
| System Lighting Effects(System PPE) | 2.8 – 2.9 µmol/J | Top-level photoelectric conversion efficiency |
| Central peak luminous intensity(Max PPFD) | > 1800 µmol/m²/s | Hanging at a height of 12 inches, a mandatory CO2 concentration of 1500ppm+ is required. |
| Core coverage area(Core Footprint) | 4 × 6 ft (1.2m × 1.8m) | For continuous rectangular moving seedbeds, it perfectly eliminates ineffective light spillage in the aisles. |
| LED chip matrix(Diode Array) | Top-tier high-power white light + 660nm deep red light | High-density lighting layout, extremely low load per LED, and extremely slow light decay. |
| Spectral configuration(Spectrum) | Medicinal Full Spectrum | Extremely high red and blue light photon flux, targeted activation of secondary metabolites during flowering. |
Electrical parameters
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Actual system power consumption(AC Input Power) | 1000W ± 5% | Constant current drive, actual power output under full grid load |
| Input Voltage | 277V – 480V AC (or 120-277V) | It is recommended that commercial plants use high-voltage input to significantly reduce the diameter of engineering cables. |
| Power Factor | > 0.95 | Fully compliant with industrial-grade high-power grid-connected safety technical specifications |
| Total Harmonic Distortion (THD) | < 10% | Significantly reduces harmonics, protecting the stability of the workshop’s PLC control system. |
| Dimming Protocol | 0-10V / Intelligent Environmental Control Bus Dimming | It can be linked with the main control system of the large-scale intelligent greenhouse to simulate stepped light intensity. |
| Number of Cascades(Daisy Chain) | A single loop can support a maximum of 100 nodes. | Impedance isolation technology is used to ensure that the dimming synchronization of the matrix light group is absolutely consistent. |
Structure and Thermal Management
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Dimensions | Length 1.8m × Width 1.2m × Height 0.09m | Unfolded physical dimensions; ultra-wide rectangular array design |
| Net Weight | Approximately 19-22 kg | Heavy industrial equipment must be installed with suspension systems that meet safety load standards. |
| Bar Count | 10 Bars | Ten ultra-long light strips are arranged in a high density, allowing photons to penetrate directly to the bottom of the canopy. |
| Thermal Design | Thickened 6063 aviation aluminum anodized passive heat dissipation | Physical passive heat dissipation has a huge surface area, completely eliminating the risk of fan failure. |
| BTU/h | Approximately 3412 BTU/h | It has a significant impact on HVAC systems; it is recommended to install a separate power supply to divert the heat source. |
| Ingress Protection) | IP65 / IP66 | It can operate stably in environments with high humidity, water vapor condensation, and sulfur fumigation. |
Business and Engineering Compliance
| Parameter Name(Specification) | Engineering Parameters /Standards | Technical Note |
| Optical transmission maintenance rate(Lifespan L90) | >54,000 hours | Meeting the financial requirements of large-scale capital agricultural projects for long-cycle equipment depreciation |
| Warranty | 5-year global all-inclusive warranty | Commercial compensation clauses covering chip light decay, driver circuit failure, etc. |
| Safety Certification(Safety Standard) | UL8800, ETL, CE | Authoritative certification is essential for large-scale centralized procurement and industrial and commercial insurance underwriting. |
| Energy Efficiency Certification(Energy Rebate) | DLC 5.1 Premium (QPL) | Large North American plantation licensees are in dire need of eligibility to receive substantial government electricity rebates. |
| Packaging | Heavy-duty foldable double-layer corrugated export box | Solving the transportation pain points of 1.8-meter-tall vehicles and optimizing overseas local delivery costs. |

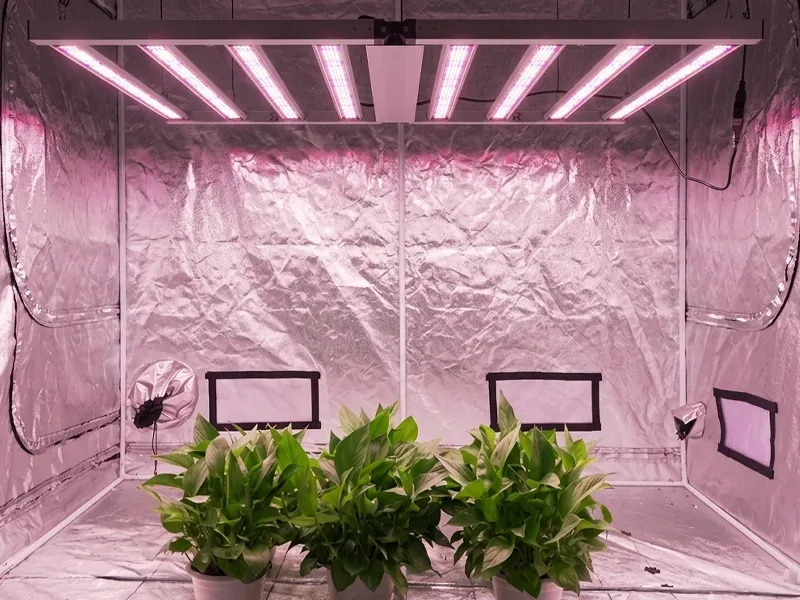

Breaking the Canopy Barrier: 1000W Deep Penetration Power
Engineered specifically for tall crops, this high-intensity 1000W lighting solution drives photons deep into the lower canopy. By unlocking the full potential of your understory flowers, it is designed to maximize total yield per square foot for commercial facilities.
- Delivering a massive 1000W output, this fixture provides ultra-high PPFD across a precise 4x4ft footprint. The intense photon density easily penetrates thick top foliage to effectively nourish lower bud sites.
- Calibrated for the demanding growth habits of taller plants, our optical design mitigates the risk of top-canopy light burn while drastically accelerating photosynthesis in the mid-to-lower tiers.
- The 8-bar array configuration eliminates the shadow blind spots common in traditional single-point light sources, ensuring plants on the perimeter receive the exact same vigorous light intensity as those in the center.

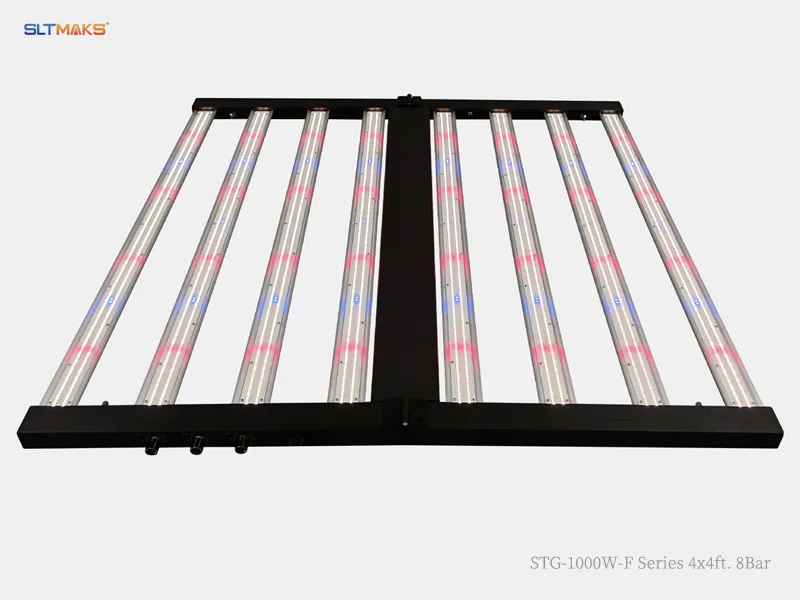

Wide-Bar Aerodynamics & Commercial-Grade Folding Design
The optimized physical architecture doesn’t just streamline your installation process—it dramatically reduces environmental control costs through superior passive thermal management.
- The intentionally wide spacing between the LED bars completely breaks the heat island effect caused by enclosed fixtures. Rising convective air easily passes through the gaps, boosting ambient cooling efficiency and significantly reducing the energy load on your greenhouse or indoor facility’s HVAC system.
- Combining aerospace-grade aluminum heatsinks with our ventilated wide-bar design ensures the fixture operates at minimal temperatures, even at a full 1000W load. This effectively slows light decay and extends the lifespan of the LED area, delivering uniform light distribution exactly where it is needed.

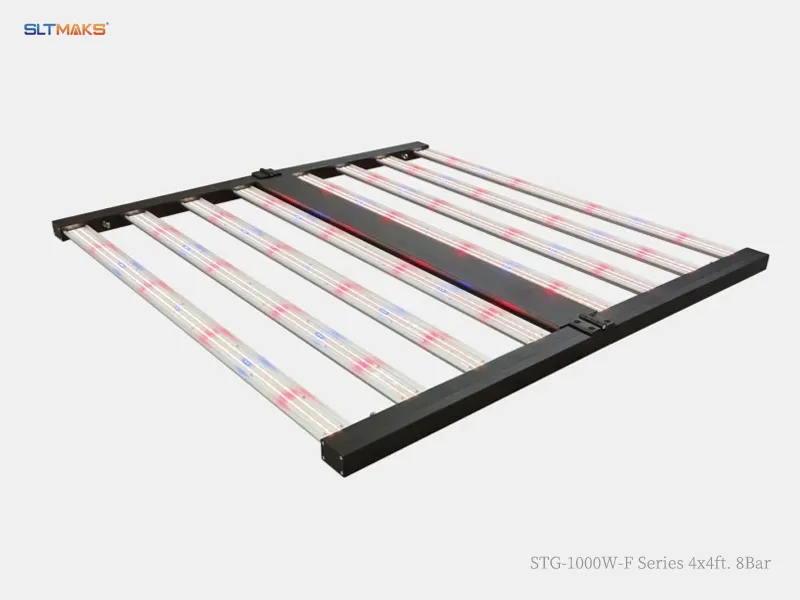

- The intuitive 180° folding design significantly reduces shipping volumes and warehousing costs. A single technician can deploy the fixture over a 4x4ft area in minutes, perfectly aligning with the rapid scaling demands of commercial cultivation.

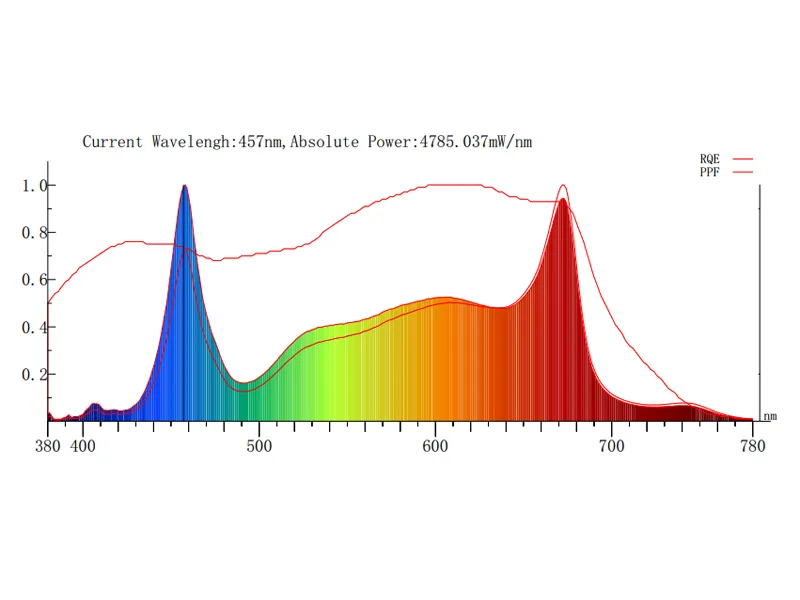

Optimized PPFD Distribution & Light Recipe Integration
Full-Spectrum Power for 1000W Commercial Scaling
Harness the full potential of your canopy with our meticulously engineered 1000W custom-tailored light recipe. By integrating enhanced 660nm deep red with a balanced full-spectrum white light, this fixture delivers the exceptionally high PPFD levels required for dense flowering and rapid vegetative growth. The massive 1000W output ensures superior deep-canopy light penetration, driving uniform and vigorous growth across your entire footprint, ultimately maximizing your harvest weight and crop quality.
Inspection, packaging and transportation
100% Rigorous Quality Inspection
Every LED grow light undergoes 48-hour aging tests and strict optical calibration before packing to ensure zero-defect delivery
Optimized Standardized Packaging
Custom high-density foam and reinforced cartons designed to withstand international transit and reduce shipping volume.
Safe & Efficient Bulk Shipping
Experienced container loading and logistics coordination to maximize space utilization and guarantee on-time global logistics.
Frequently Asked Questions
What is the core design profile and ideal application for the STG-1000W-F Series?
The STG-1000W-F features a heavy-duty, commercial-grade 8-bar folding fixture designed for a standard 4×4 ft footprint. Engineered with 1000W Deep Penetration Power, it is specifically built to “Break the Canopy Barrier,” driving high-intensity light down into the lower and middle nodes of dense plant arrays. This makes it an ideal solution for high-density indoor cultivation facilities, vertical farming setups, and greenhouse supplemental lighting where maximum yields and uniform growth are required.
What unique advantages does this fixture offer regarding optical distribution and light recipe integration?
The fixture delivers a highly optimized PPFD distribution paired with a scientifically formulated full-spectrum light recipe. The spectrum integrates deep blues, intense reds, and far-red wavelengths (with extended UV/IR support) to seamlessly cover all growth stages from vegetative (Veg) to heavy flowering. The specialized 8-bar configuration ensures an exceptionally uniform footprint, mitigating edge light decay and guaranteeing that crops at the margins receive consistent photon delivery for uniform crop quality across the entire bench.
With a high output of 1000W, how does the fixture manage thermal dissipation and structural reliability?
The system utilizes a specialized Wide-Bar Aerodynamic design that promotes open-air convection and minimizes resistance to ambient airflow. It relies entirely on a passive, fanless thermal management system built from premium, high-thermal-conductivity aluminum. This structural framework rapidly pulls heat away from the LED diodes to maintain a low junction temperature, successfully extending diode lifespan while significantly reducing the additional HVAC cooling load and operational electricity costs of your cultivation facility.
What compliance, quality assurance, and protective packaging standards does this product meet for global shipping?
Built to strict business and engineering compliance codes, each fixture undergoes 100% rigorous high-voltage burn-in testing and spectral calibration before leaving the factory. For international B2B logistics and bulk transit, the products are secured in Optimized Delivery Packaging—utilizing heavy-duty, anti-vibration materials to completely safeguard the optical components and frame during long-haul shipping, and backed by a comprehensive commercial-grade warranty.
